Standard Long-Range: 30km
High-Speed 30km Drone Fiber Optic Outer Winding Machine ED-70
Specially engineered for FPV drone fiber optic systems, this high-performance winding machine supports continuous internal spools up to 30km. Operating at a high speed of 300 meters per minute, it delivers extremely high accuracy and uniform tension, ensuring a smooth pay-off and crystal-clear communication signals during high-speed drone flight.
Highlights
- 300m/min Ultra-Speed: Dramatically increase your production efficiency with a stable winding speed of 300 meters per minute without compromising quality.
- FPV Optimized: Designed specifically for the tight tolerances of FPV internal fiber containers, ensuring snag-free deployment at extreme speeds.

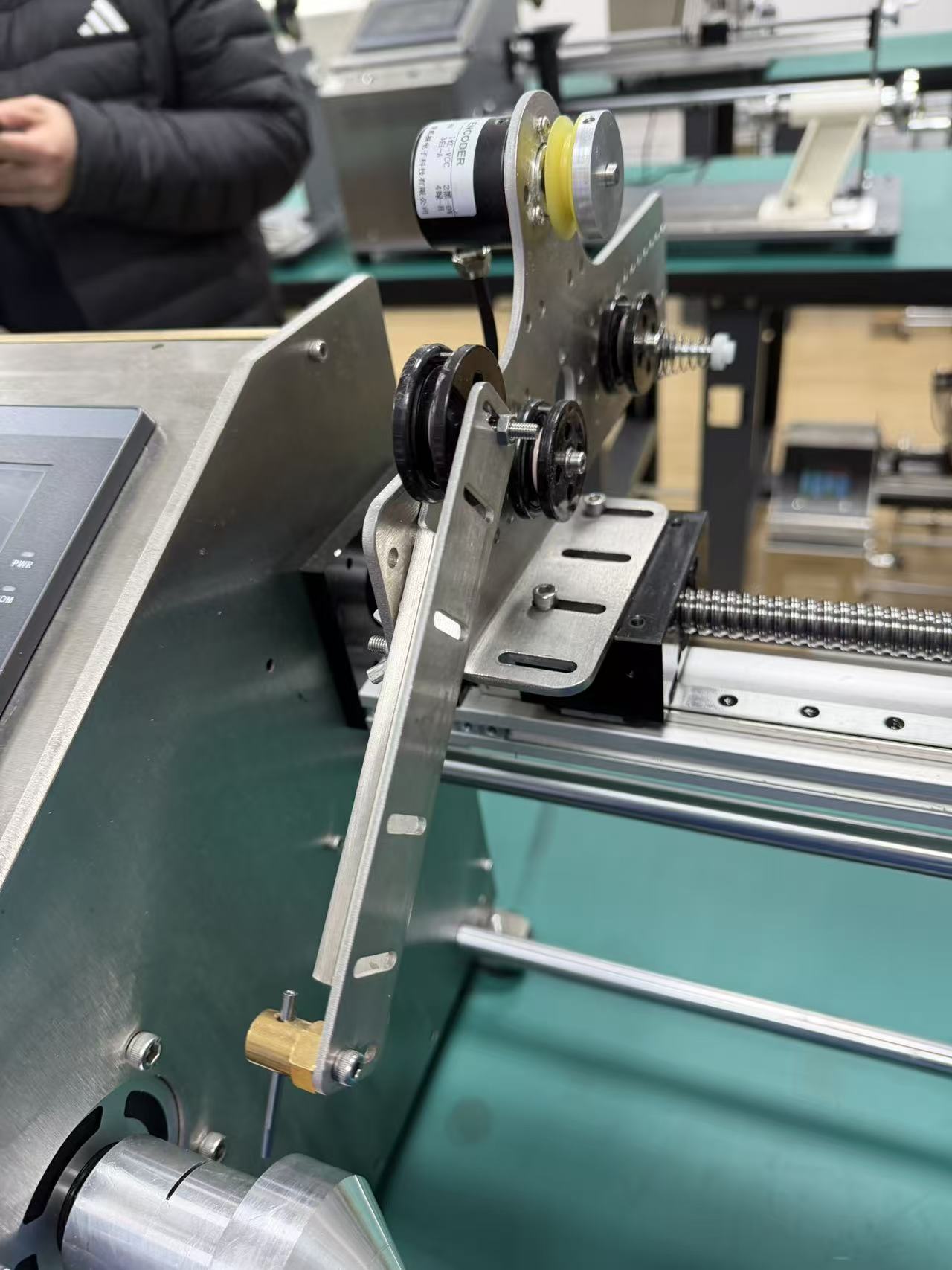

- Uniform Tension Control: Advanced closed-loop feedback keeps tension consistent, preventing signal loss or fiber damage during the rewinding process.

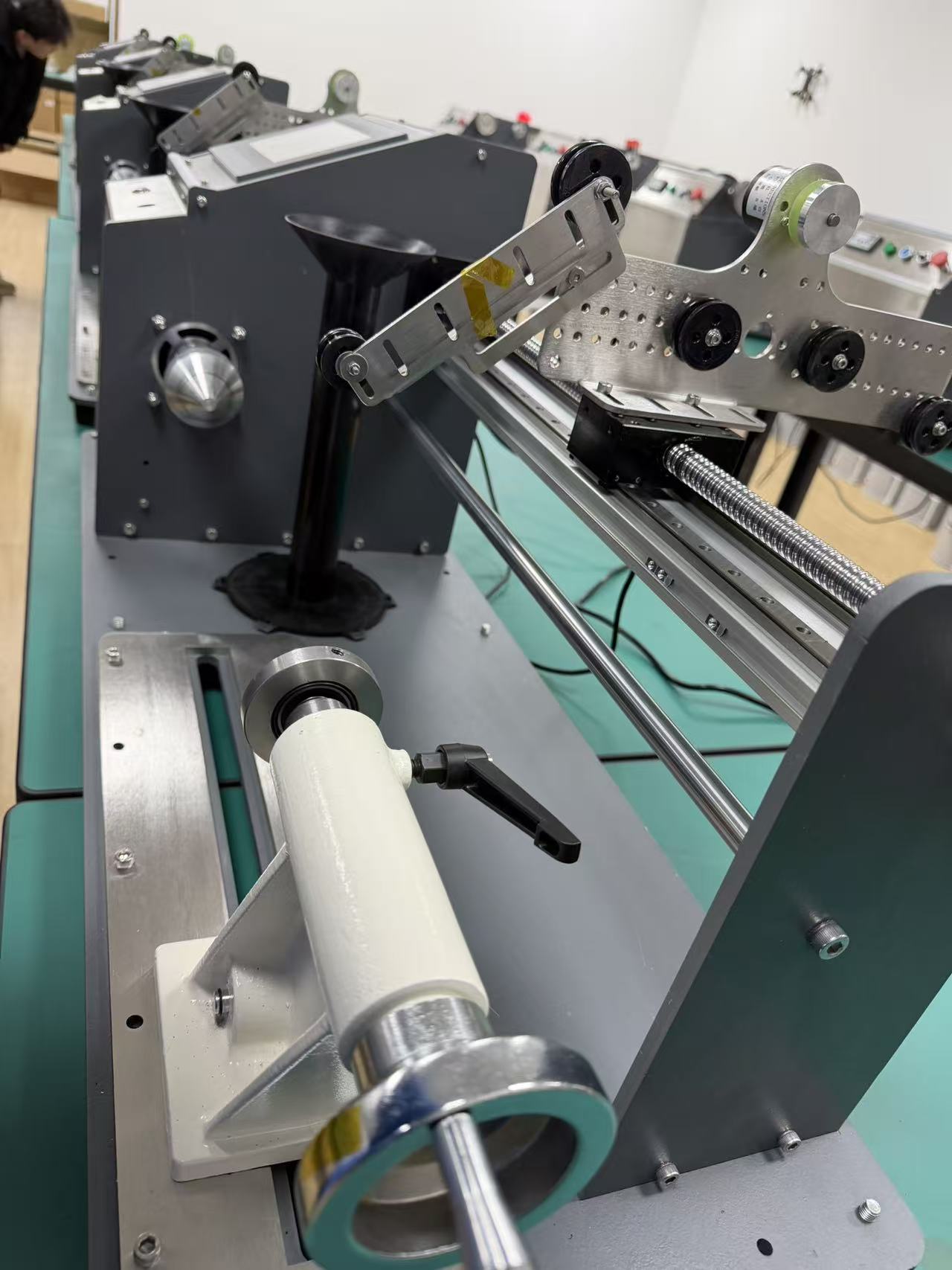

- Precision Accuracy: High-resolution traverse systems ensure perfectly layered winding, maximizing the fiber capacity within the spool.
- Russian/English language
Why This Machine？
For long-range FPV drones, the winding quality of the fiber optic link is the difference between a successful mission and a signal failure. Our 30km external winder is built to handle delicate fibers and precision materials with industrial-grade reliability.
The machine’s high-speed rewinding capability doesn't just save time; it ensures the fiber is laid with surgical precision. This creates a "perfect release" effect, allowing the drone to pay off fiber smoothly even during sharp maneuvers, maintaining a stable, high-bandwidth data link over the entire 30km range.
Specification
Device Size (LxWxH) | 970×360x380mm |
Carton Size (LxWxH) | 1030x440×490mm |
Device net weight | 57kg |
Weight including carton | 80kg |
Operating temperature | 15-40℃ |
Storage temperature | 0-50℃ |
Wire products | Optic Fiber |
Working voltage | 220V-60HZ |
Rated voltage | 100-240V |
Maximum output public ratio | 1000W |
Winding Speed
| UP to 300m/min |
Shaft diameter | 30-300mm |
Maximum spool width | 400mm |
Maximum load capacity of spool | 20kg |
Maximum diameter of fixture | 150mm |
Maximum pitch line distance | 400mm |
Standard pitch of stranded wire | 0.025mm |
Maximum pitch of the conducto | 2mm |

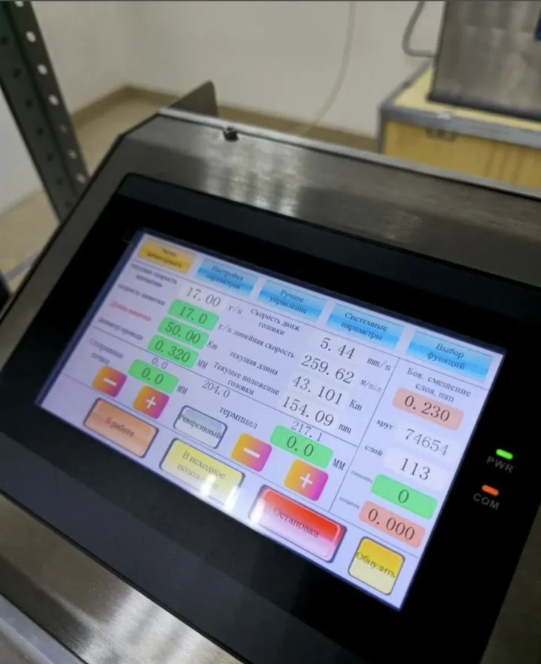

Software | Independently developed FPV fiber optic;dedicated intelligent control system |
Frequently Asked Questions (FAQ)
- Is this machine compatible with high-speed FPV deployment? Yes. The uniform tension and precision layering are specifically designed to prevent "fiber-locking," ensuring the FPV drone can deploy fiber at full flight speed without signal interruption.
- Do you support custom models, languages, or colors? Yes. We offer deep customization to meet your local market needs. Languages: Our system currently supports English, Chinese, and Russian. Other languages can be added upon request. Colors & Models: We can customize the machine's color and specifications. Note: Customization requires a specific Minimum Order Quantity (MOQ) depending on the complexity. Please contact our team for a detailed quote.
- Can the voltage and plug type be customized (e.g., 110V North American standard)? Yes. We can configure the power system to match your local grid (e.g., 110V/220V) and provide standard plugs like US, EU, or UK versions. MOQ: Voltage customization is available with different MOQ requirements depending on the model. Feel free to consult us for your specific region.
- How fast is the shipping and delivery? We pride ourselves on the fastest turnaround in the industry: Samples: Always in stock. We arrange testing and calibration immediately after payment, with shipping usually within 3 days. Bulk Orders (less than 20 units): Delivery within 7 days after payment.
- Is it difficult to install or calibrate the machine? Not at all. Our machines are designed for "Plug & Play" convenience. Fully Assembled: Every machine is shipped as a complete, pre-installed unit in a secure wooden crate. No complex mechanical assembly is required upon arrival. Easy Setup: We provide a comprehensive library of HD setup videos and technical documents. Most customers can start winding immediately by following the step-by-step guides. Expert Assistance: If you encounter any issues, our technical team is online 12 hours a day to provide remote support and troubleshooting.
- Which spool shapes are compatible with your fiber winding machines? Our machines support all common industrial spool shapes. Whether you are using cylindrical, conical, or single-tapered spools, our precision traverse system can be adjusted to match. This ensures perfectly uniform layering regardless of your spool's geometry.
Upgrade your FPV fiber production today. Whatsapp at +86-13510219832 or email us at sales02@futouav.com
